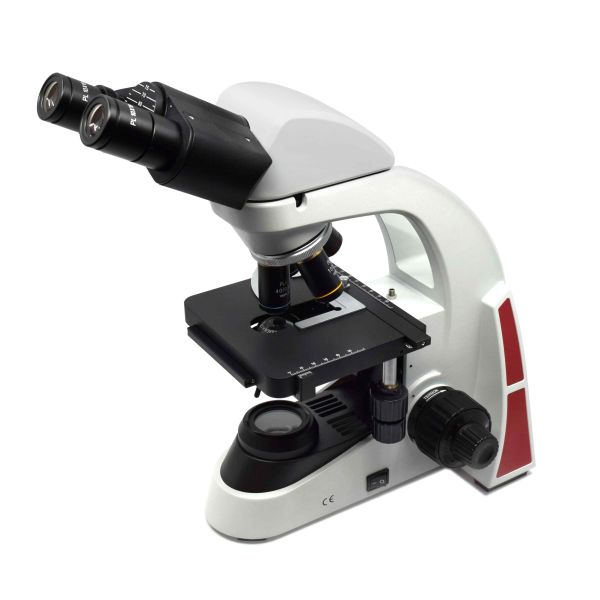

Microscope - Premium Binocular-EIS-PM201

• Premium binocular microscope with finite color corrected optical system
• Coaxial coarse and fine adjustment
• 5.5" x 5.2" graduated double layer mechanical rectangular stage with 2" x 3" cross travel on ball bearing with co-axial controls
• 4X, 10X, 40X (S) and 100X Oil (S) anti fungus coated, scratch proof plan objectives
• Microscope measures 14.5" tall, 11" long and 8.5" wide

High quality microscope with premium features and finish.  Microscope measures 14.5" tall, 11" long and 8.5" wide.

Dust cover and 100V - 240V, CE Approved Power Supply included.



Specifications

• Optical System: Finite color corrected optical system.
• Viewing Head: 30° inclined Siedentopf head, interpupillary distance: 50-75mm, ±5 diopter adjustable, 360° rotatable
• Eyepiece: Wide field plan eyepiece 10x, FOV 18mm
• Objectives: Plan (Anti fungus coated, Scratch proof), 4X, 10X, 40X (S) and 100X Oil, (S)
• Nosepiece: Ball bearing loaded, inward quadruple nosepiece with precise, positive stops for centered alignment of objectives
• Stage: 5.5x5.2" (140x132mm) graduated double layer mechanical rectangular stage, with 2" (X) x 3" (Y) cross travel on ball bearing with co-axial controls
• Focusing Movement: Coaxial coarse and fine adjustment, with coarse adjustment stop and tightness adjustment. Range: 25mm, prescision: 0.002mm
• Light Source: Illumination system LED 3W with intensity control regulator
